BNC SPRING

BNC SPRING – BNC

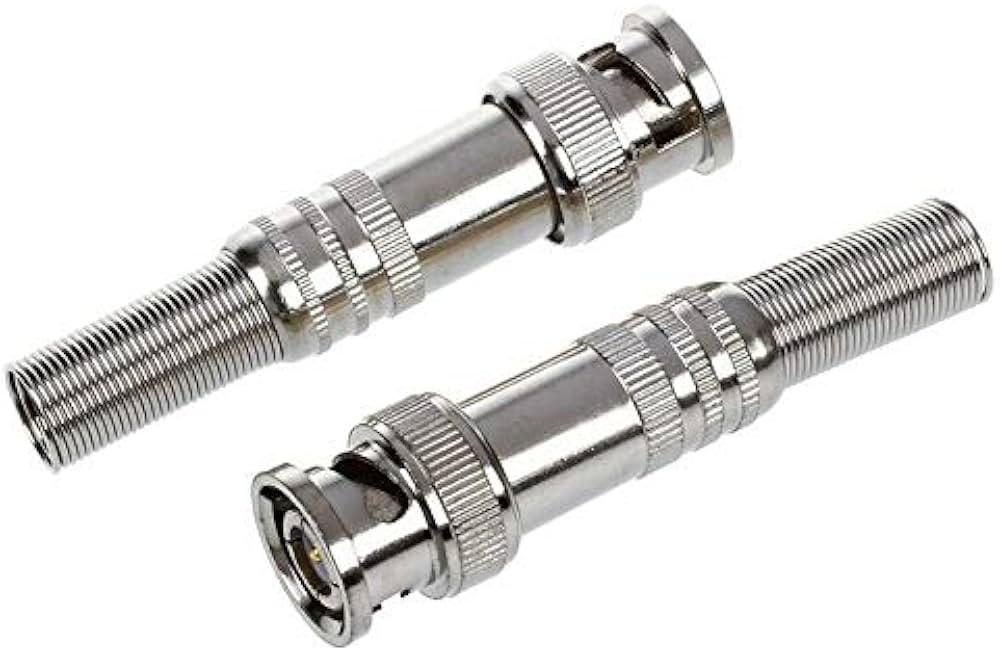

BNC Spring Connectors (Often Twist-On / Screw-On)

Are Solderless, Male Coaxial Connectors

Typically Used For Quick RG59 / RG6 CCTV Installations

They Feature a Nickel-Plated Brass Body, Spring-Loaded strain relief

And usually have a 75O Or 50O Impedance, Operating Up To 2-4 GHz

These Connectors allow for Fast Termination without a Crimping Tool

Specifications

Type: Male BNC Connector With Twist-On / Screw-On Mechanism

Impedance: Commonly 75O (Video / CCTV) Or 50O(RF)

Cable Compatibility: Designed For RG59, RG6, Or Similar Coaxial Cables

Connection Method: Solderless, Screw-On, Or “Twist” Design

Frequency Range: Usually 0 to 2 GHz, with some Up To 4 GHz

Material: Nickel-Plated Brass Housing, Copper / Gold-Plated Pin, Zinc Alloy Ring

Signal Type: Optimized For HD-Analog Video (TVI / CVI / AHD) And SD-SDI

Electrical: Typically, VSWR (Voltage Standing Wave Ratio) and >4000MO Insulation Resistance

Features

Strain Relief: The “Spring” Tail Provides Cable Protection And Reduces Bending Stress

Easy Installation: Requires no specialized Crimp Tools; ideal for Field Repairs

Secure Fit: Provides a secure Connection and good Shielding
